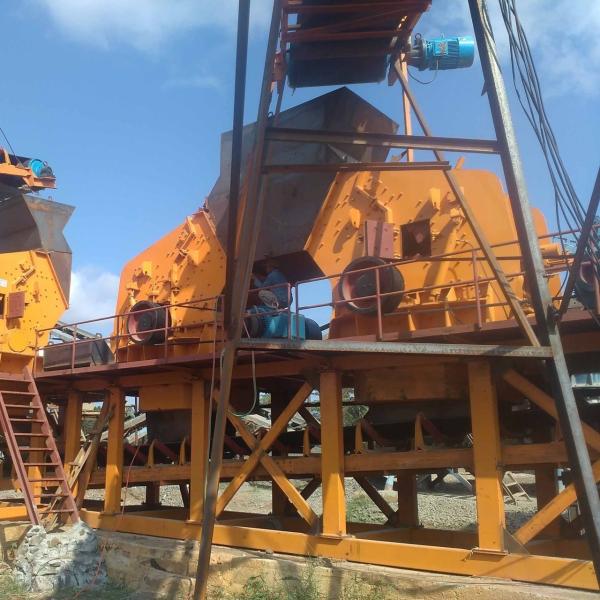

Impact Crusher Stone Crushing Machine
Impact Crusher can crush the large, medium and small size materials
(granite, limestone, concrete ,etc.)With max feed size less than
500mm and compression strength less than 350Mpa.
It is widely used in metallurgy, mine, cement, chemical
engineering, fire resistant materials, ceramics and other
industrial sectors, as well as in the expressway construction,
water conservancy project, building crushed stone, and machine-made
sand process fields, etc.
Presently, by practices, its comprehensive function is superior to
the cone crusher and the hammer crusher.
Model | Feed Opening Size | Max. Feed Size | Discharge Size | Power | Capacity | Overall Size(L*W*H) |
PF1007 | 400*730mm | 300mm | 20~60mm | 55kW | 30~50t/h | 2400*1560*2660mm |
PF1010 | 400*1080mm | 350mm | 20~60mm | 75kW | 50~80t/h | 2400*1900*2620mm |
PF1210 | 400*1080mm | 350mm | 20~60mm | 132kW | 70~120t/h | 2620*2070*2720mm |
PF1214 | 400*1430mm | 350mm | 20~60mm | 160kW | 130~180t/h | 2720*2720*2890mm |
PF1315 | 860*1520mm | 500mm | 20~60mm | 220kW | 160~250t/h | 3164*2684*2600mm |
FAQ:
1. Are you manufacture or trading company?
We are factory, established in 1968.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% prepayment by T/T , after the seller finish the production
process and buyer verify the machine , 70% balance should paid
before delivery, L/C is also acceptable .
4. How long is the warranty? Does your company supply the spare
parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build
it?
Yes, we can help you set up a complete production line and give you
related professional advice. We had already build many mining
projects in China & Overseas.
![]() |
